Air Source Domestic Water Heater Heat Pump

Product number: LY200-70TWB01-01

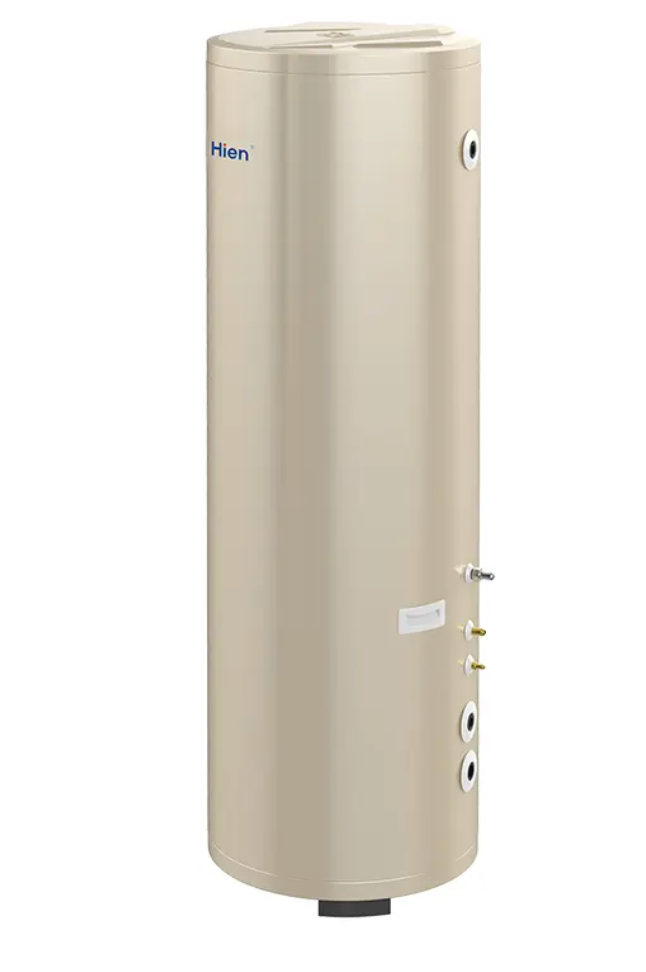

Rated volume: 200L

Tank size: 500x1700(mm)

Refrigerant: R22

Tank color: Light gold

Tank weight: 60kg

Water tank rated pressure: 0.7MPa

Overpressure allowed: 0.8MPa

Maximum working pressure: 3.0MPa

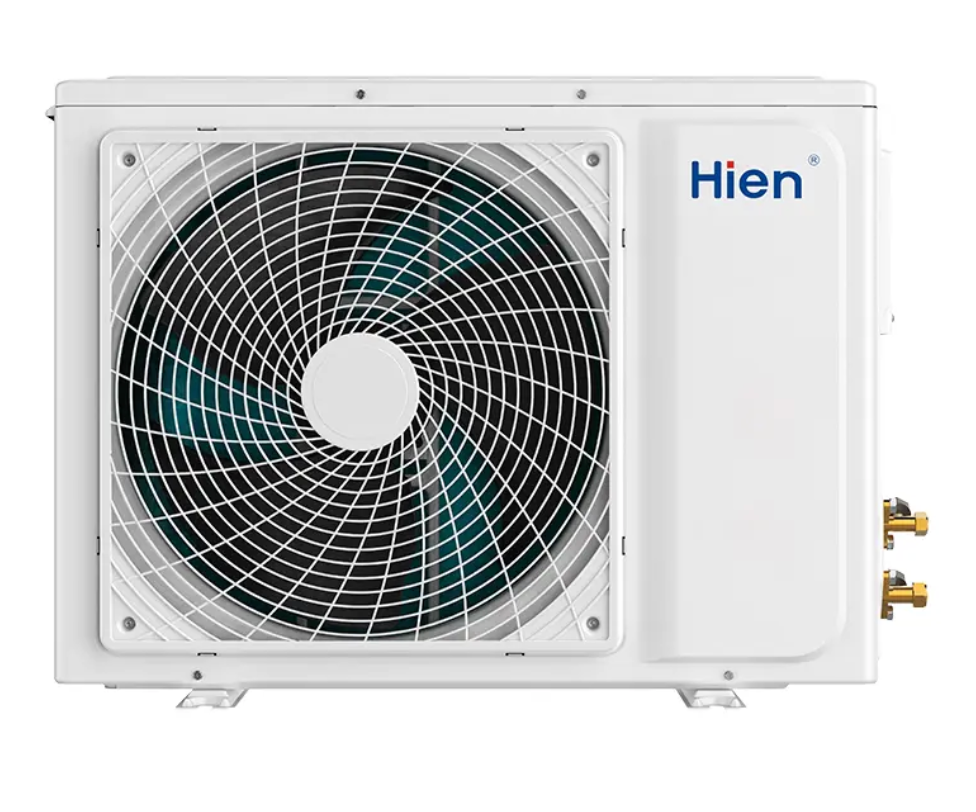

Machine model: KF70/B01

Power supply: 220V-50Hz

Anti-shock level: Protection level Class I/IPX4

Nominal heating capacity/power consumption: 3300W/805W

Coefficient of performance (COP): 4.10W/W

Nominal working current: 3.66A

Maximum power consumption/working current: 1150W/5.2A

Nominal/maximum outlet water temperature: 55°C/60°C

Nominal water production: 70L/h

Maximum working pressure of high/low pressure side: 3.0/3.0MPa

Discharge/suction side allows working overpressure: 3.0/0.75MPa

Maximum pressure of the evaporator: 3.0MPa

Noise: ≤50dB(A)

Refrigerant charge: R22 0.73kg

Dimensions: 780x320x540(mm)

Net weight: 27kg
