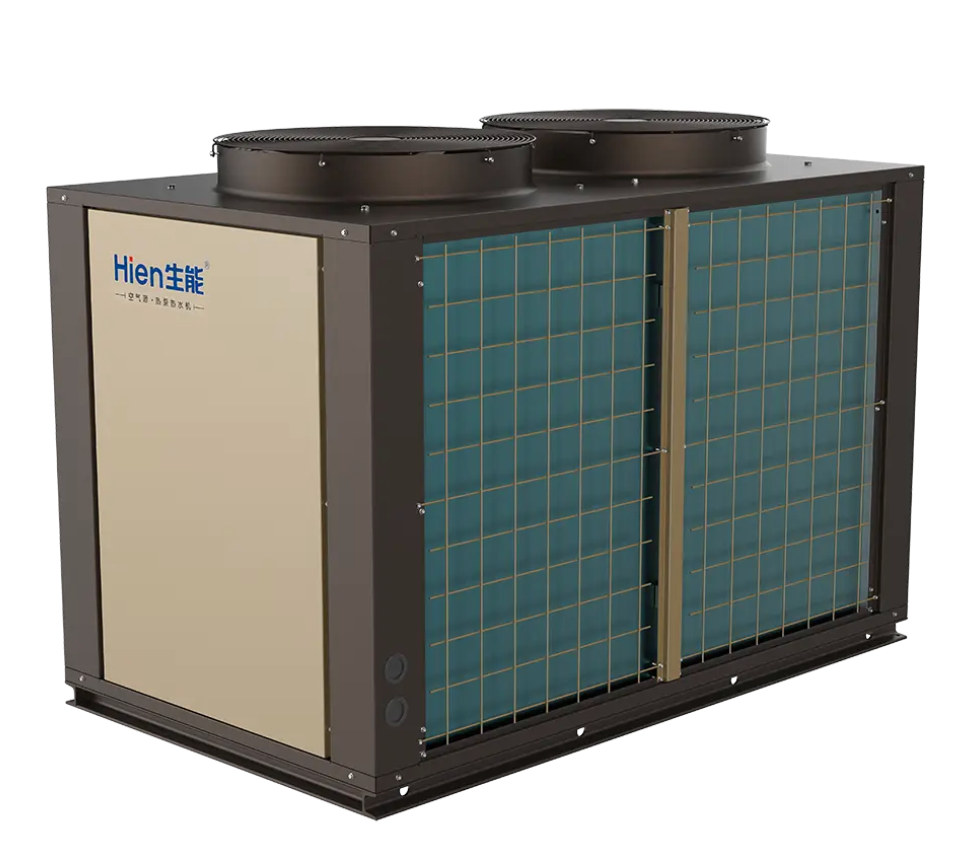

GreenLife Series Heat Pump System Commercial Heat Pump For Hotel Swimming Pool

Model number: DKFXRS-32II/C2

Power supply: 380V 3N-50Hz

Anti-shock level: Protection level Class I/IPX4

Rated heating capacity/power consumption: 32000W/8100W

Rated working current: 14.5A

Maximum power consumption/working current: 13500W/24A

Rated heating water temperature: 55°C

Water production: 780L/h

Circulating water flow: 7m³/h

Water side pressure loss: 40kPa

Maximum working pressure of high/low pressure side: 4.5/4.5MPa

Discharge/suction side allowable working pressure: 4.5/1.5MPa

The maximum pressure of the evaporator: 4.5MPa

Circulating water pipe diameter/pipe connection: DN40/1½" Coupling

Noise: ≤64dB(A)

Refrigerant charge: R410A / (3.9 x 2)kg

External dimensions: 1620 x 950 x 1160(mm)

Net weight: 350kg
